Description
Intermatic Mutiwave Pool Spa Control System model PE653RC replaces 933500-000 and 933500.
Features of this pool and spa control system that works with gas heaters include:
Internal 24 hour Digital Clock Memory Back Up Waterproof Wireless Handheld Controller Full Variable Speed Control Controls 5 Pool/Spa Functions 3 On/Off Events per Equipment Programmable Heater Cool Includes: Wireless Remote Control Antenna can be mounted in various locationsWater Temperature Sensor 178PA28A Freeze Protection Thermostat 8 Optional Control Accessories:PE140 Valve/Pump Control 120/240V-24VPE24A Valve Actuator Additional Hand Held Remote if needed. Replacement Option For: Lennovator BL-40TC
he “Multi-Wave” Wireless Control System Controls Pools/Spas and now your Home!Combine the PE653 Multi-Wave Controller with the PE953 Multi-Wave Hand Held Transceiver and automate your pool/spa and even your home with the most technologically advanced wireless control system.The Multi-Wave is designed as a “plug and play” system.
Install the water sensor PA122 and watch the Multi-Wave thermostat come alive to maintain your pool and/or spa water temperatures.
Install the air sensor 178PA28A and let the Multi-Wave freeze protection system take over to protect your investment.
Connect your equipment to the intelligent RS485 communication port and relax as the Multi-Wave recognizes and controls your equipment with ease.

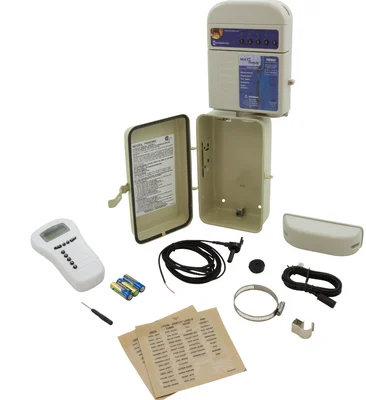

Included:Owner’s ManualEquipmentLabelsThree AA BatteriesHand Held PE953 TransmitterSmall Flat Head ScrewdriverWater Sensor with Hose ClampReceiving PE653 Controller with 2T2485GA EnclosureAir Temperature SensorWater Temperature Sensor
Specifications:A Full Two-Speed and Variable-Speed Control!Enclosure & Control: NEMA 3R rated for Indoor/Outdoor installation in beige finish 93 /8 in. (23.8 cm) H x 51 /2 in. (14.0 cm) W x 35 /8 in. (9.2 cm) DEnclosure Knockouts: Combination 1 /2 – 3 /4 in. nominal knockouts, one on back and each side of enclosure and two on bottomShipping Weight: 5.4 lbs (2.3 kg)Agency Approval: CSA/C-USRatings:Control Supply: 120, 240 VAC(NO Neutral wire required), 50/60Hz, 5-Watts MaximumCircuit 1: 20 Amp Resistive (17 FLA, 80 LRA), 120, 240 VAC 50/60 Hz Circuit 2 thru 5: 15 Amp Resistive (10 FLA, 60 LRA), 120, 240 VAC, 50/60 Hz
