Description
DISCONTINUED , see the motor BN24V1 separately and wet end kit 5069-607
We also offer wet end parts as needed.
Jacuzzi® J-Series 3/4HP Bath Pump Century 120V 1-Speed 48 frame. Fully assembled pump from wet end kit and pump motor – 1 year factory warranty.

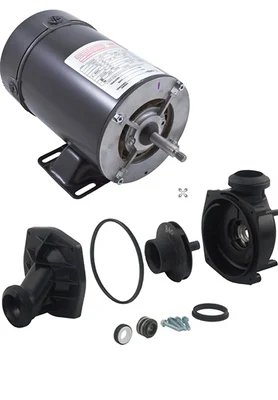

This pump assembly is the combined, assembled Jacuzzi J-Series 0.75HP wet end kit with 1 1/2 inch plumbing connections (for 1 1/2 inch ID hose/pipe) plus the Century 3/4HP 1-speed 120V motor BN24V1.
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | None |
| Suction Auxillary Port | None |
| Suction Style | Bottom |
| Suction Connection (Physical Dimension) | 2-15/16″od |
| Suction Connection Type | Male Jacuzzi Thread (mjt) |
| Suction Pipe Size | 1-1/2″ |
| Discharge Auxilary Port | None |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 2-15/16″od |
| Discharge Connection Type | Male Jacuzzi Thread (mjt) |
| Discharge Pipe Size | 1-1/2″ |
| Horsepower | 0.75hp – matched wet end and pump motor |
| Manufacturer Wet End | Jacuzzi/Carvin |
| Pump Model | J Series |
| Motor Brand | Century |
| Volute Fastening Type | 4 Bolts |
Motor specs
| Motor Amperage | 9.4A |
| Voltage | 115v |
| Phase | 1 Phase (1ph) |
| Frame Type | 48Y |
| Speed | 1 Speed (1-Spd) |
| Horsepower | 0.75hp |
| Total Horsepower | 0.75thp |
| Motor Shaft Type | Threaded |
| Motor Style | Thru Bolt |
| Capacitor On Top | No |
| Manufacturer |
AO Smith/Century/Regal Beloit |
Pump assembly does not include cord.
BN24V1-315805
