Description

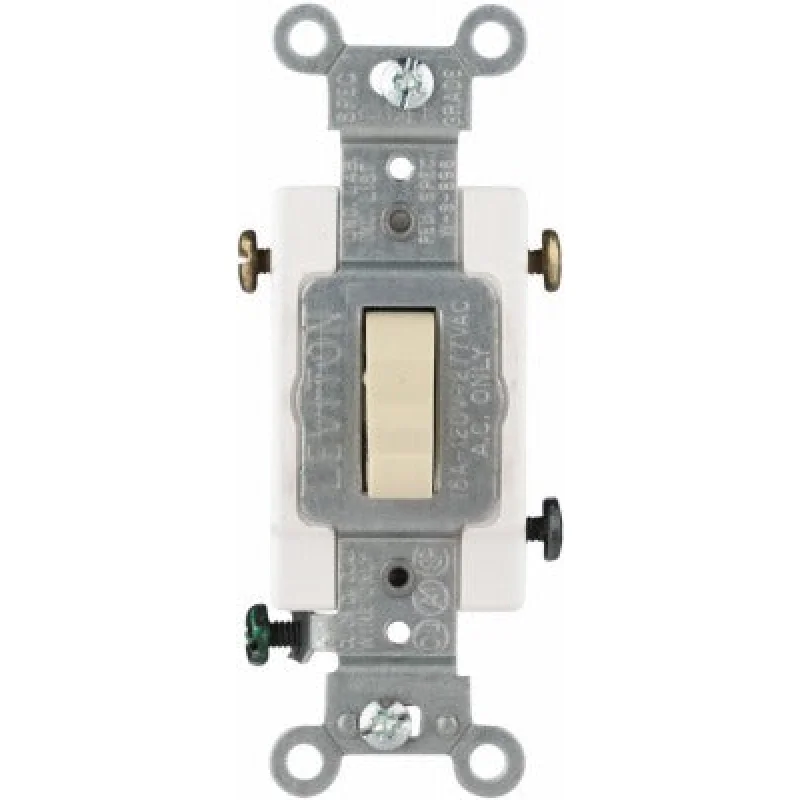

The LEVITON MFG CO S07-CS315-2IS is a commercial specification grade 3-way grounded toggle switch designed for reliable switching in demanding electrical installations. Rated at 15 amps and 120/277 volts, it also supports motor loads up to 1/2 HP at 120V and 2 HP at 240V. Large silver-cadmium oxide contacts deliver extended service life under repeated switching cycles. Captive mounting screws and large-head terminal screws backed out and staked from the factory speed up side wiring of up to No. 10 copper wire, reducing time on the rough-in. Licensed electricians working in commercial and institutional environments will find this switch built to handle the demands of specification-grade projects.
This switch is suited for 3-way switching applications in commercial, institutional, and industrial settings where specification-grade components are required. Its 120/277V dual-voltage rating makes it compatible with both standard residential-style branch circuits and the 277V single-phase lighting circuits common in commercial buildings. The heavy-gauge rust-resistant steel mounting strap and break-off plaster ears allow for precise alignment during installation in standard single-gang boxes. It ships in a package quantity of 10 units, making it practical for stocking on larger projects.
Key Features
- Commercial specification grade construction for long service life in high-demand environments
- Rated 15A at 120/277V with motor load ratings of 1/2 HP at 120V and 2 HP at 240V
- Large silver-cadmium oxide contacts for extended switching cycle life
- Captive mounting screws and pre-backed large-head terminal screws for fast, secure side wiring up to No. 10 copper
- Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for accurate alignment
- UL listed and backed by a limited 10-year warranty
Compatibility
Designed as an OEM-style specification grade replacement or new-installation 3-way toggle switch for standard single-gang electrical boxes in commercial and institutional 120V or 277V lighting branch circuits.
Installation Notes
Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify zero voltage with a meter before any wiring work. Use the side-wiring terminals for copper conductors up to No. 10 AWG. Confirm proper 3-way wiring configuration between both switches before restoring power.
Technical Specifications
- Switch Type: 3-Way Grounded Toggle
- Grade: Commercial Specification
- Amperage Rating: 15A
- Voltage Rating: 120/277V
- Motor Load Rating: 1/2 HP at 120V, 2 HP at 240V
- Contact Material: Silver-cadmium oxide
- Mounting Strap: Heavy-gauge rust-resistant steel
- Max Wire Size: No. 10 copper
- Package Quantity: 10 EA
- Weight: 1.79 pounds
- Warranty: Limited 10-year
- Certifications: UL Listed
Standard Information
- Brand: LEVITON MFG CO
- Manufacturer Part Number: S07-CS315-2IS
