Description

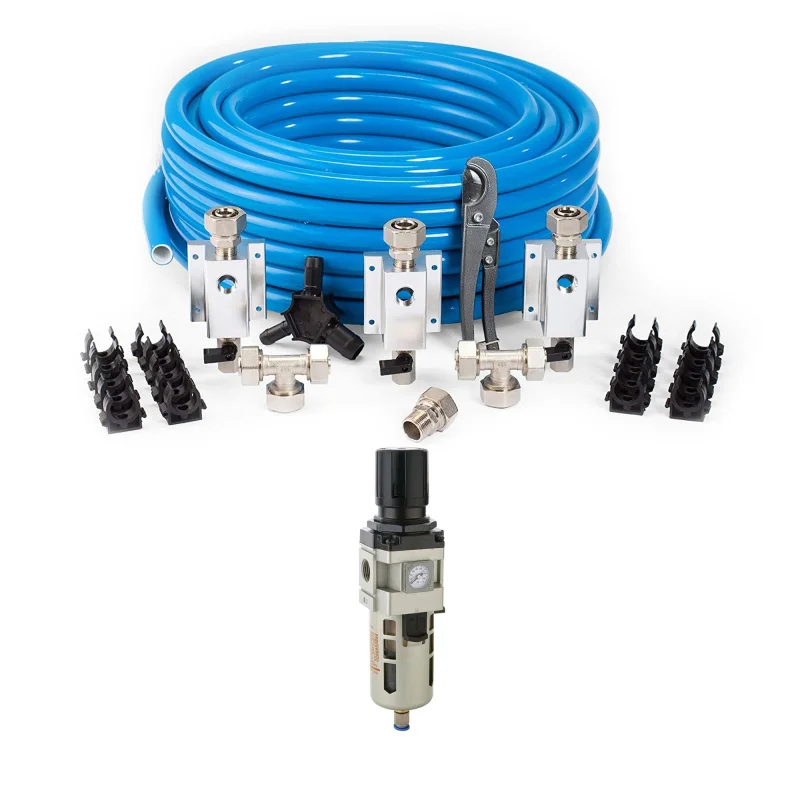

Connect your plumbing systems with the MaxLine Compressed Air Tubing Kit with Regulator.
This air compressor tubing is constructed with an aluminum core surrounded by an inner and outer layer of polyethylene. This tubing can be mounted on wall surfaces, in-wall, or buried underground or concrete.
This tubing can hold any shape bent manually by hand. Say goodbye to clutter with this industrial air-compressed system, for it doesn’t require any glue, soldering, or crimping. To straighten the tubing, run it through our straightening tool, or use the bender tool to make precise angles. Straightening and bending tools are sold separately.
Kit includes 300 feet of 3/4-Inch tubing, (3) air outlet kits, (2) tee fittings, 3/4-inch straight fitting, (20) mounting pipe clips, debar, and cutter tool.
This general-purpose 5-micron filter protects air compressor tools by removing harmful solid particles and liquid contaminants from your machine while the regulator allows the pressure adjustment of your compressed air system.
These regulators are constructed of heavy-duty zinc die-cast bodies to give you a lifetime of use. It also features a manual drain and metal bowl guard.
Get your plumbing set up with the MaxLine Semi-Flexible Compressed Air Tubing Kit with Regulator.
- This set comes with semi-flexible tubing and a filter regulator combination
- Semi-flexible tubing that uses compression fittings for leakproof performance
- Designed for efficient installation in diverse settings, from small shops and farms to large manufacturing facilities
- Maximum inlet pressure 175 PSI, operating range 0-150 PSI
- Includes mounting bracket and square embedded pressure gauge
- RapidAir M7580 (1 Pack)
- Constructed with an aluminum core surrounded by an inner and outer layer of polyethylene
- Can be mounted on wall surfaces, in-wall, or buried underground or concrete
- Includes: 300 feet of 0.75-inch tubing, (3) air outlet kits, (2) tee fittings, 3/4-inch straight fitting, (20) mounting pipe clips, debar, and cutter tool
- Coupler size: 0.75 inches
- Max PSI: 200 at 70 degrees Fahrenheit
- Dimensions (L): 300 feet
- Weight: 50 pounds
- Product Warranty: 1-year warranty
- Quantity: 1
- RapidAir K93217 (1 Pack)
- Combination filter that features a space-saving design and combines both operations into 1 unit
- Protect your family and loved ones safe with this regulator filtering out harmful substances
- Micron filter protects air compressor tools by removing harmful solid particles and liquid contaminants from your machine
- Flow direction is also reversible by simply relocating the gauge to the opposite side
- Maximum inlet pressure is 175 PSI, operating range 0-150 PSI
- Includes mounting bracket and square embedded pressure gauge
- Manual drain and metal bowl guard
- Features 5-micron filter to remove harmful solid particles and liquid contaminants
- Flow direction is reversible by relocating gauge to the opposite side
- Flow rate: 300 CFM
- Outlet and inlet size: 0.75-inch
- Material: Zinc die-cast
- Dimensions (L x W x H): 3.25 x 3.75 x 12 inches
- Weight: 2.91 pounds
- Product Warranty: 1-year warranty
- Part Number: K93217
- Quantity: 1
