Description

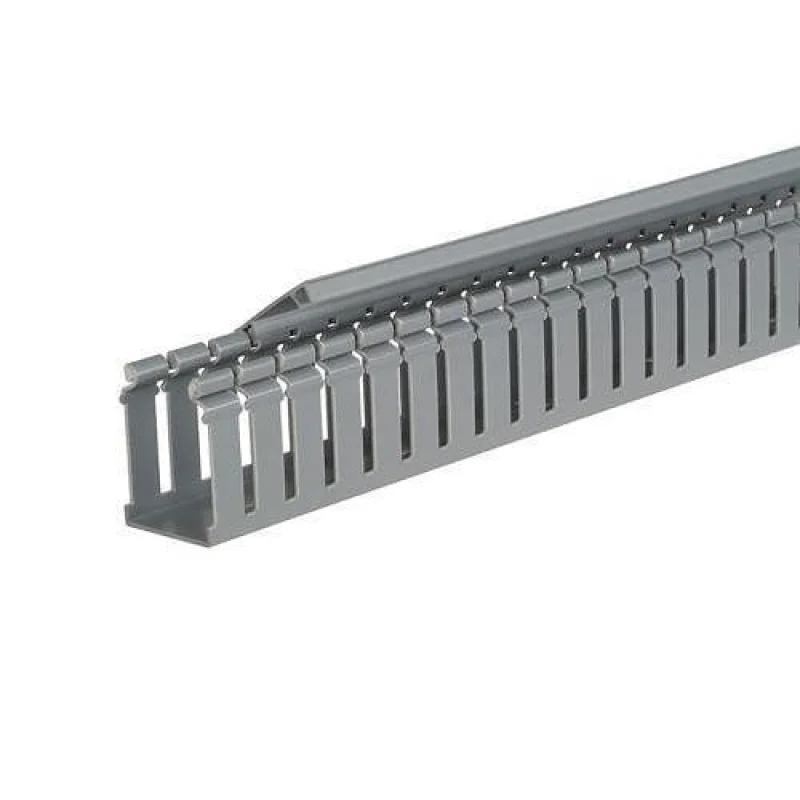

The PANDUIT H4X4LG6 is a slotted hinged wiring duct made from PVC, designed to route, organize, and protect electrical wiring inside control panels, enclosures, and electrical cabinets. The hinged cover design allows technicians to access conductors quickly without removing fasteners or disassembling the duct run. At 4 inches wide, 4 inches tall, and 6 inches in length, this duct handles high wire-fill applications where standard narrower channels fall short. Electricians and panel builders install this duct during control panel assembly or retrofit work where wire management and future serviceability are priorities.
This duct is suited for industrial and commercial electrical installations, particularly inside motor control centers, PLC panels, and custom control enclosures. The slotted sidewalls allow conductors to exit the duct at any point along the run, providing routing flexibility for dense wiring layouts. The hinged cover eliminates the need for separate snap-on or screw-down lids, saving labor during initial build and follow-on maintenance.
Key Features
- Hinged cover design allows fast wire access without removing duct sections
- Slotted sidewalls permit conductor egress at any point along the length
- PVC construction resists moisture, chemicals, and corrosion in panel environments
- 4 inch x 4 inch channel cross-section accommodates high wire-fill density
- 6 inch length suits modular layouts and short panel runs
Compatibility
Designed as an OEM-style wiring duct for use in electrical control panels, enclosures, and industrial panel builds requiring a 4 inch x 4 inch slotted hinged PVC duct section.
Installation Notes
Licensed electricians and panel builders typically install this duct during control panel fabrication or enclosure retrofit work. De-energize all circuits in the enclosure before routing or modifying wire runs. Duct sections are typically mounted to panel back plates or DIN rail structures using appropriate PVC duct mounting accessories. Installation should comply with applicable NEC requirements for conductor fill and wiring methods in enclosures.
Technical Specifications
- Material: PVC
- Width: 4 inches
- Height: 4 inches
- Length: 6 inches
- Cover Type: Slotted Hinged
- Unit of Measure: Each
- Quantity Per Unit: 1
Standard Information
- Brand: PANDUIT
- Manufacturer Part Number: H4X4LG6
