Description

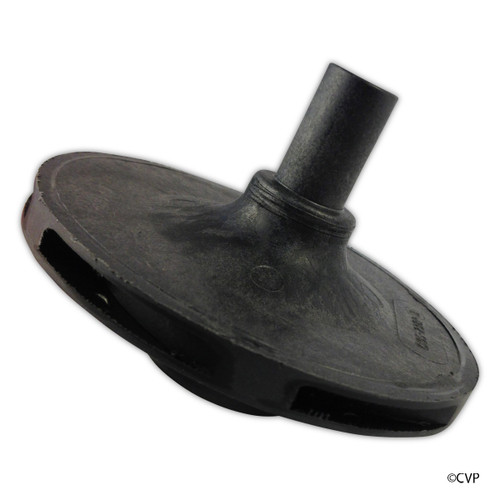

The Pentair C105-238PB Impeller Assembly is designed for use with specific Pentair Sta-Rite® Max-E-Pro Series Pool and Spa Inground Pump Models, along with the Sta-Rite® Max-E-Glas® II Series Pool & Spa Inground Pump Model and Dura-Glas® II Series Pool & Spa. It is a closed-face impeller with a diameter of 4 11/16″ and a width of 3/8″. It has an eye diameter of 1 7/8″ with a length of 5/8″, as well as a seal seat depth of 3/4″. The shaft measures 1 3/16″ in length and is 3/4″ in diameter while the seal seat diameter is 1 1/8″. This impeller assembly is designed to provide efficient and reliable performance. It is also easy to install and maintain.
- Impeller Type – Closed Face
- Impeller Diameter OD – 4-11/16″
- Vane Width ID – 1/4″
- Eye Diameter OD – 1-7/8″
- Eye Length – 5/8″
- Impeller Width OD – 3/8″
- Seal Seat Depth – 3/4″
- Shaft Length – 1-3/16″
- Shaft Diameter OD – 3/4″
- Seal Seat Diameter OD – 1-1/8″
Fitment guidelines:
For use with Pentair Sta-Rite® Max-E-Pro Series Pool and Spa Inground Pump Model P6E6E-206L, P6R6E-206L, P6EA6F-206L, P6RA6F-206L, Sta-Rite® Max-E-Glas® II Series Pool and Spa Inground Pump Model P4EA6F-187L, P4E6E-187L, P4E62E-187L, Dura-Glas® II Series Pool and Spa.
Additional Information:
Alternate part numbers – 351021152, C105238PB, STA1018552, 35-102-1152, PENC105-238PB, STA-101-8552
