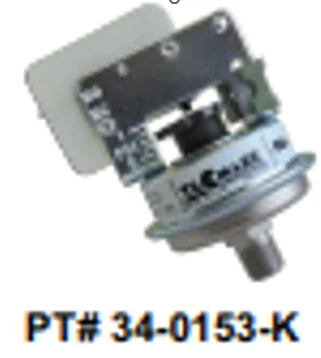

Pressure Switch 34-0153 HydroQuip 3 Amp Metal Wheel
Pressure Switch, 120V, 3AMP, 2PSI, BWG (adjustable)
Pressure switch 34-0153 / 34-0153-K by HydroQuip. Adjustable with 1/8″ thread. Replaces 3158-EN and can be used to replace the discontinued Len Gordon 800140-3.
Need teflon tape? Best to wrap the threads of the pressure switch with teflon tape to assure a good seal at the pressure switch tap on the heater manifold.
Pressure Switch Mounting Instructions
Use 2-3 wraps of teflon tape in a clock-wise direction.
Remove the plug or any debris from the pre-threaded mounting hole in the heater housing.
Carefully and slowly begin threading the pressure switch into the hole assuring the switch is going in straight and not cross-threaded.
Continue threading the switch into the heater until lightly snug and terminals are aligned as desired. Approx. 3-4 threads will be left showing.
