Description
DISCONTINUED

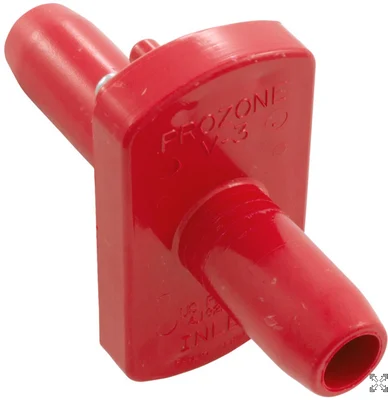

Prozone Injector V3 600002 Red PZ-684
Injector, 3/4″barb
Dynamic Venturi Injector™
Constructed of an ozone/chemical resistant polymer, it has two ports with an internal 360º orifice mixing chamber which provides complete dynamic mixing. Each 1/4″ port has a built in ozone resistant check valve built into it.
Performance Specifications:
| 1 PSI: | 1 CFH |
| 2 PSI: | 2 CFH |
| 3 PSI: | 3 CFH |
| 8 PSI: | 5 CFH |
Cubic feet per hour (CFH)
Replaces 2228-01 , Pz684 .
This is a state-of-the-art water/ozone mixer which provides maximum mass transfer of gaseous ozone or liquid chemicals into water with minimum back pressure.
A patented dynamic adjustable orifice can be optimized for extended performance and optimization of gas/liquid mixing.
Constructed of an ozone/chemical resistant polymer, it has two ports with an internal 360º orifice mixing chamber which provides complete dynamic mixing.
This has 3/4 inch tube barb connections as standard.
This one is the lowest CFH cubic feed per hour (1-5) PZ 684 red.
The blue is the middle one –600207 (2-14 CFH) and the white 600212 is the one with the largest value from 3-20 CFH.
We also offer 1/4 inch inner diameter vinyl tubing 55-270-1511 and 3/4 inch inner diameter tubing 55-270-1513 as needed.
