Description
DISCONTINUED – see our other 1hp 230v pumps or contact us for assistance

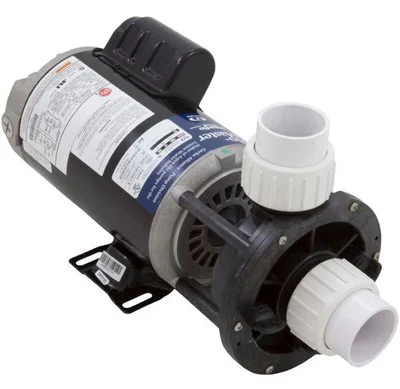

02610001-5010 1hp 230 VOLT 2-SPEED, 48 frame spa pump.Pump Aqua Flo FMCP1.0hp230v2-Speed ,48 frame 1-1/2″OEM 02610001-5010 .
Aqua-Flo by Gecko’s Flo-Master CP pumps are designed with a unique, high-performance impeller providing flow rates that exceed all tested competition. Ideal for larger, multi-jetted tubs or similar applications requiring greater output. Each pump is engineered with careful attention to detail and accuracy. Spa Pump Features: Long life shaft seal, Built-in overload protection,
Reinforced engineered plastic construction, Adapts to hair and lint traps for self priming aplications, Stainless steel volute fasteners, Available with 115v and 230v motors. California Title 20 Compliant. In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp. The manufacturer reserves the right to change motors used in their OEM pumps at any time. Pictures represent the most common offering by the manufacturer.
You can guarantee the motor type by selecting Substitute or Alternate items above that use a specific US Motor or Century Motor. Replaces T55CXBLH-961.
| 1a | Pump Union, AquaFlo, 1-1/2″fbt x 1-1/2″s, qty 2 | 52271000 |
| 1b | Pump Union, 2″fbt x 2″s, w/adapter | 52202100 |
| 1c | Pump Union, 2″Female Buttress Threadx2″ Slip, wht Quantity 2 | 52272000 |
| 3a | Volute, Gecko AquaFlo FMCP/TMCP | 92770603 |
| 3b | Volute, Gecko AquaFlo FMHP/FMVP | 92770501 |
| 5 | Impeller, Gecko AquaFlo FMHP/FMCP/TMCP, 0.5 Horsepower | 91693501 |
| 5 | Impeller,Gecko AquaFlo FMHP/FMCP/TMCP/FMVP, 0.75ohp/1.0thp | 91693551 |
| 5 | Impeller,Gecko AquaFlo FMHP/FMCP/TMCP/FMVP, 1.0ohp/1.5thp | 91693601 |
| 5 | Impeller,Gecko AquaFlo FMHP/FMCP/TMCP, 1.5ohp/2.0thp | 91693651 |
| 5 | Impeller,Gecko AquaFlo FMHP/FMCP/TMCP, 2.0ohp/3.0thp | 91693701 |
| 6a | O-Ring, Buna-N, 5-1/8″ ID, 1/8″ Cross Section, Generic | O-228 |
| 6b | O-Ring, Buna-N, 4-3/4″ID, 3/32″ CrossSection, Generic | O-257 |
| 7 | Wear Ring, Gecko AquaFlo FMHP/FMCP/TMCP | 92830062 |
| 8 | Screw, Gecko AquaFlo, 8-32 x 5/8″ | 99730050 |
| 9 | Faceplate, Gecko AquaFlo FMCP | 91231402 |
| 9 | Suction Cover Kit, Gecko FMCP/CMCP, 1-1/2″, 48 Frame | 56910040 |
| 9 | Faceplate, Gecko AquaFlo FMHP | 91231301 |
| 9 | Suction Cover Kit, Gecko AquaFlo FMHP/CMHP, 1-1/2″ | 56910010 |
| 10 | O-Ring, Buna-N, 5/16″ ID, 1/16″ Cross Section, Generic | O-446 |
| 11 | Drain Plug, Gecko AquaFlo FMHP/FMCP/FMVP, 1/4″ | 92290015 |
| 12 | Union Adapter, 2″mbt x 1-1/2″fbt, w/O-Ring | 50100130 |
| 14 | Adapter, 2″ Slip, Pump Union | 91431200 |
| 15 | Union Nut, 2″, Pump Union | 91431150 |
| 16a | Wet End, Gecko AquaFlo FMCP 0.5hp 1-1/2″mbt 48fr | 91040830-000 |
| 16a | Wet End, Gecko AquaFlo FMCP 0.75hp 1-1/2″mbt 48fr | 91040800-000 |
| 16a | Wet End, Gecko AquaFlo FMCP 1.0hp 1-1/2″mbt 48fr | 91040810-000 |
| 16a | Wet End, Gecko AquaFlo FMCP 1.5hp 1-1/2″mbt 48fr | 91040820-000 |
| 16a | Wet End, Gecko AquaFlo FMCP 2.0hp 1-1/2″mbt 48fr | 91040840-000 |
| 16b | Wet End, Gecko AquaFlo FMHP 0.5hp 1-1/2″mbt 48fr | 91040680-000 |
| 16b | Wet End, Gecko AquaFlo FMHP 0.75hp 1-1/2″mbt 48fr | 91040690-000 |
| 16b | Wet End, Gecko AquaFlo FMHP 1.0hp 1-1/2″mbt 48fr | 91040700-000 |
| 16b | Wet End, Gecko AquaFlo FMHP 1.5hp 1-1/2″mbt 48fr | 91040720-000 |
| 16b | Wet End, Gecko AquaFlo FMHP 2.0hp 1-1/2″mbt 48fr | 91040730-000 |
| 18a | Pump, Dream Maker Gecko, 1.5hp, 115v, 1-Speed | 03510632-5000 |
| 18a | Pump,Aqua Flo FMCP,0.75hp,115v,2-Spd,48fr,1-1/2″,OEM | 02607000-1010 |
| 18a | Pump,Aqua Flo FMCP,1.0hp,115v,2-Spd,48fr,1-1/2″,OEM | 02610000-1010 |
| 18a | Pump, Aqua Flo FMCP,1.0hp,230v,2-Spd, 48fr,1-1/2″,OEM | 02610001-5010 |
| 18a | Pump, Aqua Flo FMCP,1.5hp,115v,2-Spd,48fr,1-1/2″,OEM | 02615000-1010 |
| 18a | Pump,Aqua Flo FMCP,1.5hp,230v,2-Spd,48fr,1-1/2″,OEM | 02615005-1010 |
| 18a | Pump,Aqua Flo FMCP,2.0hp,230v,2-Spd,48fr,1-1/2″,OEM | 02620000-1010 |
| 18b | Pump, Aqua Flo FMCP, 0.75SPL USMtr,115v, 1-Spd, 48fr, 1-1/2″ | 02507000-1010HZN |
| 18b | Pump, Aqua Flo FMCP, 1.0hp Century, 115v, 1-Spd, 48fr,1-1/2″ | 02510000-1010HZW |
| 18b | Pump, Aqua Flo FMCP, 1.5hp Century, Conv, 1-Spd, 1-1/2″ | 02515000-1010HZW |
| 18b | Pump, Aqua Flo FMCP, 2.0hp Century, Conv, 1-Spd, 1-1/2″ | 02520000-1010HZ |
| 18b | Pump, AquaFlo FMCP, 0.75hp Century, 115v, 2-Spd, 48fr,1-1/2″ | 02607000-1010HZW |
| 18b | Pump, Aqua Flo FMCP, 1.0hp Century, 115v, 2-Spd, 48fr,1-1/2″ | 02610000-1010HZW |
| 18b | Pump, Aqua Flo FMCP, 1.5SPL USMtr,115v, 2-Spd, 48fr, 1-1/2″ | 02615000-1010HZN |
| 18b | Pump, Aqua Flo FMCP, 1.5hp Century, 115v, 2-Spd, 48fr,1-1/2″ | 02615000-1010HZW |
| 18b | Pump, Aqua Flo FMCP, 1.5hp Century, 230v, 2-Spd, 48fr,1-1/2″ | 02615005-1010HZW |
| 18b | Pump, Aqua Flo FMCP, 2.0hp Century, 230v, 2-Spd, 48fr,1-1/2″ | 02620000-1010HZW |
| 19a | Pump,Aqua Flo FMHP,0.75hp,115v,2-Spd,48fr,1-1/2″,OEM | 02107000-1010 |
| 19a | Pump, AquaFlo FMHP,1.0hp,115v,1-Spd, 48fr, 1.5″, OEM | 02010000-1010 |
| 19a | Pump, Aqua Flo FMHP,1.0hp,115v,2-Spd,48fr,1-1/2″,OEM | 02110000-1010 |
| 19a | Pump,Aqua Flo FMHP,1.0hp,230v,2-Spd,48fr,1-1/2″,OEM | 02110005-1010 |
| 19a | Pump,Aqua Flo FMHP,1.5hp,115v,2-Spd,48fr,1-1/2″,OEM | 02115000-1010 |
| 19a | Pump, Aqua Flo FMHP, 1.5hp, 230v, 2-Spd,48fr,1-1/2″, OEM | 02115005-1010 |
| 19a | Pump,Aqua Flo FMHP,2.0hp,230v,1-Spd,48fr,1-1/2″,OEM | 02020000-1010 |
| 19a | Pump,Aqua Flo FMHP,2.0hp,230v,2-Spd,48fr,1-1/2″,OEM | 02120000-1010 |
