Description

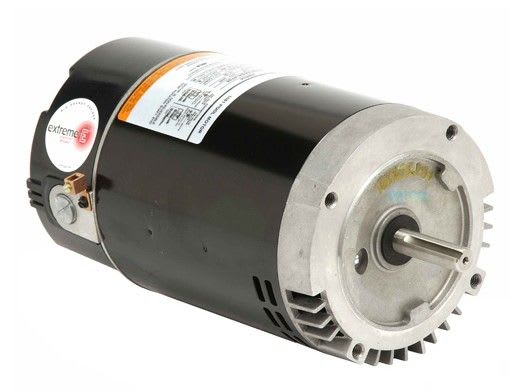

Replacement C-Flanged Keyed & Threaded Shaft Pool Motor, 1HP 115/208-230V 56C, Premium Energy Efficient, ASB653
Motor Features:
-
Two Compartment
-
Shaft Threads – 7/16-20 UNF-2A
-
50 Degree ‘C’ Ambient
-
Triple Bearing Protection
-
1081 Design
-
Continuous Duty
-
Class B Insulated
-
Open Drip-Proof
-
Double Sealed Ball Bearings
-
300 Series Stainless Steel Shaft
-
Thermally Protected
-
6.5″ Diameter Frame
-
Switchless Design
-
Voltage Selection Device (Dual Voltage Only)
-
Frequency: 60
-
Length Less Shaft: 10.77
-
Optimized internal airflow design minimizes heat and moisture buildup inside the motor
-
Internal bearing cover protects the drive/pump end ball bearing from water and debris that may occur inside of the motor
