Description

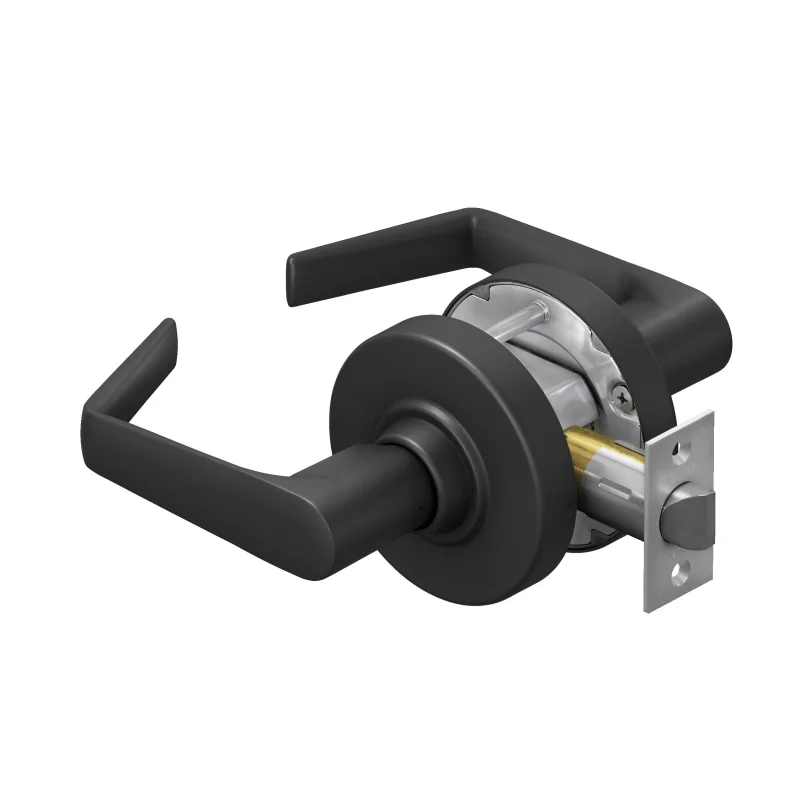

The SCHLAGE COMMERCIAL ALX10SAT622 is a Grade 2 passage lever lock from the ALX Series, featuring the Saturn lever design in a Matte Black finish. Passage function means the lever operates freely in both directions without a key or turn button, making it suited for interior doors that require unrestricted traffic flow. The lock ships with a 2-3/4 inch spring latch and an ANSI strike, providing a ready-to-install assembly. Installation is handled by licensed locksmiths, commercial door hardware specialists, or qualified general contractors working on light commercial or institutional interior openings.
This lever lock is designed for light commercial, multi-family, and institutional interior door applications where a keyed or locking function is not required. Typical installations include hallways, common areas, closets, and interior corridors in office buildings, schools, and multi-family residential properties. The Matte Black finish suits modern commercial and hospitality interior aesthetics. The included spring latch and ANSI strike reduce the need for separately sourced hardware on standard door preparations.
Key Features
- Grade 2 ANSI/BHMA rated lever lock for light commercial duty
- Passage function lever turns freely from both sides, no key required
- Saturn lever design in Matte Black (622) finish
- Includes 2-3/4 inch spring latch (47267038) and ANSI strike (47267101)
- Part of the ALX Series, designed for standard commercial door preparations
Compatibility
Designed as an OEM-style replacement or new-installation lever lock for Grade 2 commercial passage applications on standard door preparations accepting ALX Series hardware.
Installation Notes
Installation should be performed by a qualified locksmith or licensed contractor familiar with commercial door hardware. Power is not required for this mechanical lock. Verify door thickness and backset before installation to confirm latch and strike compatibility. Follow applicable building codes and the manufacturer instructions included with the unit.
Technical Specifications
- Series: ALX Series
- Grade: Grade 2
- Function: Passage
- Lever Style: Saturn
- Finish: Matte Black (622)
- Latch Included: 2-3/4 inch spring latch (47267038)
- Strike Included: ANSI strike (47267101)
- Length: 10.1 inches
- Width: 7.8 inches
- Height: 5.2 inches
- Weight: 3.8 pounds
- Sales Unit: Each (EA)
Standard Information
- Brand: SCHLAGE COMMERCIAL
- Manufacturer Part Number: ALX10SAT622
