Description

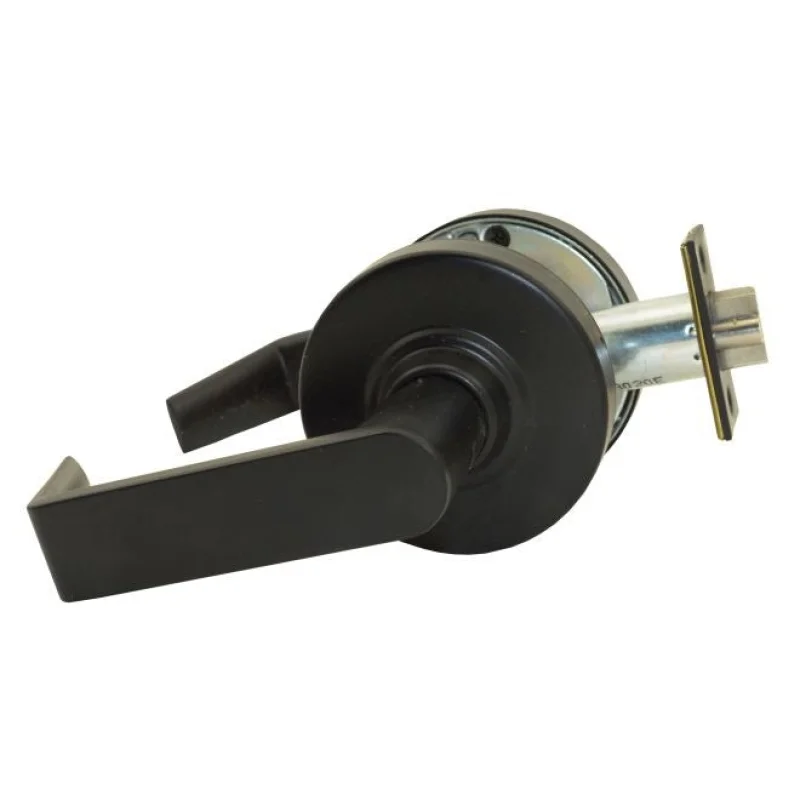

The SCHLAGE COMMERCIAL ND80BRHO622 is a storeroom-function lever lock from the ND Series, built for commercial and institutional door hardware applications. It features a Small Format Less Core (SFIC-ready) cylinder housing, allowing the end user to install a small-format interchangeable core of their choice without additional machining. The Rhodes lever trim gives it a clean, professional appearance in a Matte Black (622) finish. This unit ships complete with a 13-247 latch and a 10-025 strike plate, making it a ready-to-install hardware set for standard commercial doors.
The ND80BRHO622 is suited for storeroom or closet applications where the lever is always locked from the outside and free-egress is required from the inside. Typical installations include storage rooms, server rooms, utility closets, and similar spaces in commercial office buildings, healthcare facilities, schools, and institutional environments. A licensed locksmith or commercial door hardware installer typically handles specification and installation in new construction or retrofit projects.
Key Features
- Storeroom function: outside lever always locked, inside lever always free for egress
- Small Format Less Core (SFIC) design accepts most small-format interchangeable cores
- Rhodes lever trim in Matte Black (622) finish
- Includes 13-247 latch and 10-025 strike plate for a complete installation set
- ND Series heavy-duty commercial grade construction
- Sold individually; packaged dimensions 8 inches x 9.5 inches x 4.75 inches
Compatibility
Designed as an OEM-style replacement or new-installation fit for standard commercial door preparations accepting ND Series cylindrical lever locks with small-format interchangeable core cylinders.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lock prep standards. Verify the door prep (bore diameter, cross-bore, and backset) matches ND Series specifications before installation. No cylinder is included; a compatible small-format interchangeable core must be sourced and installed separately. Consult local building codes for egress and accessibility requirements, including ADA lever-force limits, before finalizing hardware selection.
Technical Specifications
- Series: ND Series
- Function: Storeroom
- Cylinder Type: Small Format Less Core (SFIC)
- Lever Style: Rhodes
- Finish: Matte Black (622)
- Included Hardware: 13-247 Latch, 10-025 Strike
- Package Length: 8 inches
- Package Width: 9.5 inches
- Package Height: 4.75 inches
- Weight: 5.1 pounds
- Sales Unit: Each
Standard Information
- Brand: SCHLAGE COMMERCIAL
- Manufacturer Part Number: ND80BRHO622
