Description

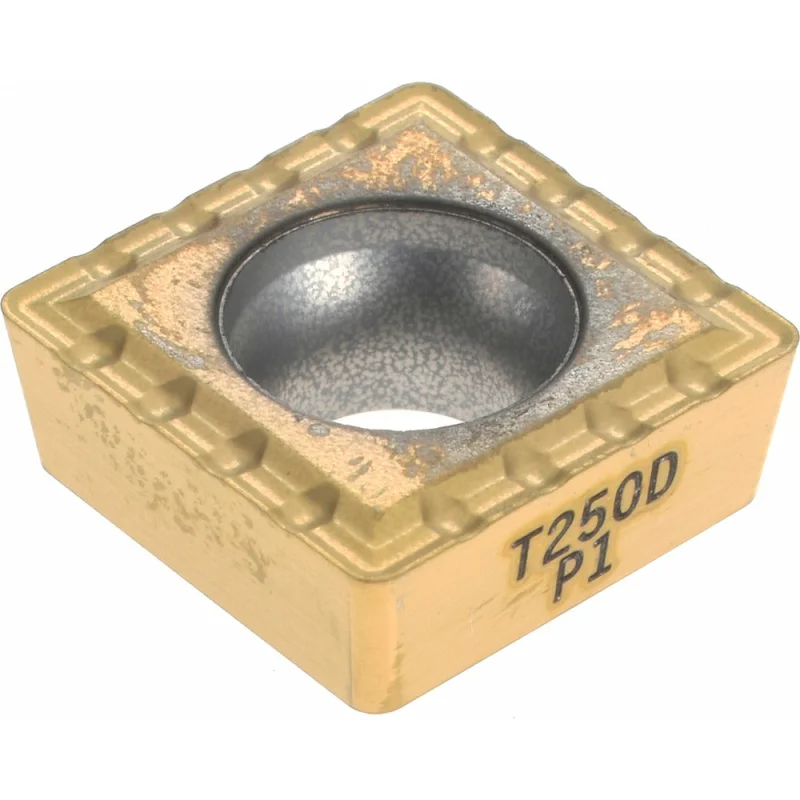

The SECO 00059715 is a solid carbide indexable drill insert designed for use in indexable insert drills in demanding metal-cutting applications. The insert carries the SCGX style geometry with a P1 chipbreaker, a 90-degree included angle, and a 0.5-inch inscribed circle. Manufactured to grade T250D and coated via PVD with TiAlN and TiN, the insert delivers wear resistance and thermal stability across a broad range of workpiece materials. It measures 0.5 inches in length, 0.5 inches in width, and 0.1875 inches thick, with a 0.031-inch corner radius. This insert is installed and indexed by machinists and CNC tool-crib technicians in production and job-shop environments.
This insert is suited for universal application across multiple material groups, including ISO material codes H, M, N, P, and S, covering carbon steels, stainless steels, non-ferrous metals, high-temperature alloys, and hardened materials. It fits insert drill bodies that accept the SCGX 12-size insert format. Typical use cases include through-hole and blind-hole drilling operations on CNC machining centers and lathes where indexable tooling is preferred over solid-drill regrinding cycles.
Key Features
- SCGX insert style with P1 chipbreaker geometry for controlled chip evacuation during drilling
- T250D grade solid carbide with PVD-applied TiAlN and TiN coating for extended tool life
- 90-degree included angle compatible with standard indexable drill bodies
- 0.5-inch inscribed circle (insert size code 12) for precise seating and repeatable indexing
- Universal material compatibility across ISO codes H, M, N, P, and S
- C5 and C6 material grade classification for versatile cutting condition range
Compatibility
Designed for use in indexable drill bodies that accept the SCGX 12-size insert format (insert size code 12, 12.70 mm width). Specific drill body compatibility should be confirmed against the tool manufacturer’s insert selection guide prior to ordering.
Installation Notes
Insert replacement and indexing should be performed by a qualified machinist or tooling technician with the machine spindle fully stopped and the machine placed in a locked-out, de-energized state per applicable OSHA lockout/tagout procedures. Use the appropriate Torx or insert-clamp wrench specified by the drill body manufacturer to seat and torque the insert clamp screw. Inspect the insert pocket and clamp for wear or debris before seating the new insert. Do not attempt to re-sharpen or modify the insert geometry.
Technical Specifications
- Insert Style: SCGX
- Insert Material: Solid Carbide
- Manufacturer Grade: T250D
- Material Grade: C5, C6
- Chipbreaker: P1
- Coating: TiAlN, TiN
- Coating Process: PVD
- Included Angle: 90 degrees
- Inscribed Circle: 0.5000 inches
- Corner Radius: 0.031 inches
- Length: 0.5000 inches
- Width: 0.5000 inches
- Thickness: 0.1875 inches
- Insert Size Code: 12
- Primary Workpiece Material: Universal (H, M, N, P, S)
- Package Quantity: 1
- Minimum Order Quantity: 10
- Weight: 0.18 pounds
- UNSPSC Code: 23242105
Standard Information
- Brand: SECO
- Manufacturer Part Number: 00059715
