Description

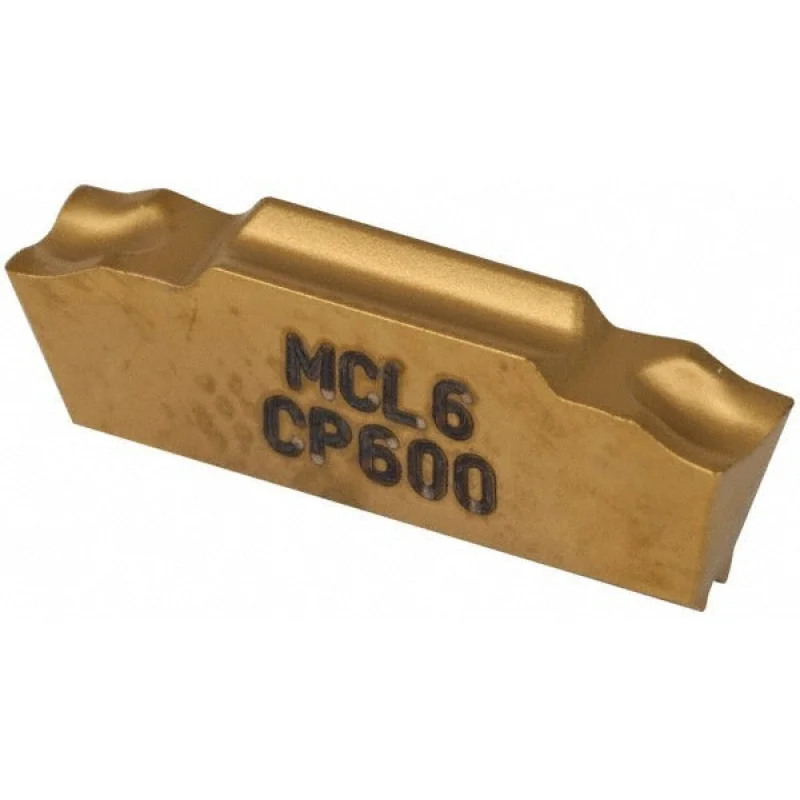

The SECO 00088697 is a solid carbide multi-directional turning insert in the MDT series, designed for precision turning operations across a range of workpiece materials. Built to grade CP600 with a PVD-applied TiAlN/TiN coating, this LCMF-style insert delivers controlled chip formation through its MC chipbreaker geometry. It measures 0.630 inches in length with a cutting height of 0.177 inches, a maximum cutting width of 0.118 inches (3.00 mm), and a corner radius of 0.008 inches. The neutral hand orientation and double-end configuration make it adaptable to varied toolholder setups. Licensed machinists and CNC turning specialists are the primary installers.
This insert is suited for external and internal turning applications where multi-directional cutting paths are required. The CP600 grade and PVD coating make it appropriate for use on ISO material groups M (stainless steel), N (non-ferrous), P (steel), and S (superalloys). The double-end design extends usable insert life in production environments. It fits toolholders configured for the LCMF insert style, and the style designation is LCMF160302-0300-MCL6. Typical use cases include finish and semi-finish turning in both job-shop and production CNC environments.
Key Features
- CP600 grade solid carbide construction with PVD-applied TiAlN/TiN coating for wear resistance
- MC chipbreaker geometry for controlled chip evacuation during multi-directional cutting
- Neutral hand orientation for flexible toolholder compatibility
- Double-end insert design extends usable service life
- Compatible with ISO workpiece material groups M, N, P, and S
- Relief angle of 7 degrees supports positive cutting action
Compatibility
Designed for use in toolholders configured for the LCMF insert style with insert size code 160302. Compatible with workpiece materials classified under ISO groups M (stainless steel), N (non-ferrous), P (steel), and S (superalloys) as indicated by the manufacturer. Style designation: LCMF160302-0300-MCL6.
Installation Notes
Installation and indexing should be performed by a qualified machinist following machine tool OEM guidelines. Power down and lock out the CNC turning center before seating or replacing inserts. Use the correct torque wrench per toolholder manufacturer specifications when securing the clamping screw. Inspect the toolholder pocket for wear or debris before seating a new insert to ensure proper support and runout control.
Technical Specifications
- Insert Style: LCMF
- Series: MDT
- Manufacturer Grade: CP600
- Material Grade: C5
- Insert Material: Solid Carbide
- Coating/Finish: TiAlN/TiN, PVD Coated
- Insert Size Code: 160302
- Insert Length: 0.630 inches (15.90 mm)
- Cutting Height: 0.177 inches
- Maximum Cutting Width: 0.118 inches (3.00 mm)
- Corner Radius: 0.008 inches
- Relief Angle: 7 degrees
- Chipbreaker: MC
- Insert Hand: Neutral
- Single or Double End: Double
- Full Radius Insert: No
- Primary Workpiece Material Code: M, N, P, S
- Weight: 0.05 pounds
- Package Quantity: 1
- Minimum Order Quantity: 10
Standard Information
- Brand: SECO
- Manufacturer Part Number: 00088697
