Description

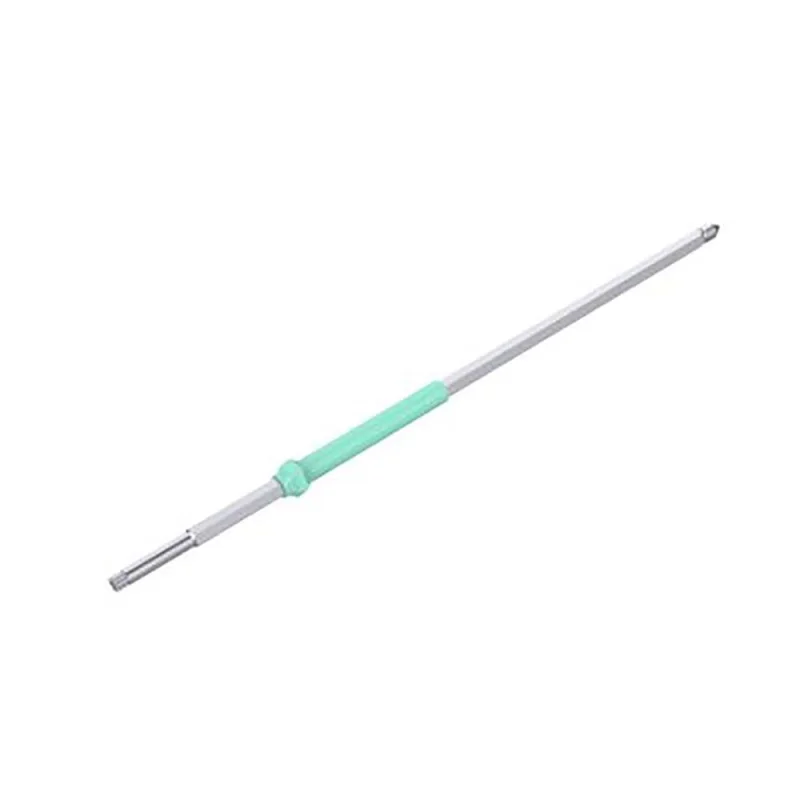

The SECO 02440082 is a T8 Torx Plus drive tool designed for seating and securing indexable inserts in compatible cutting tool bodies. This driver applies the correct torque profile to Torx and Torx Plus fasteners used on indexable toolholders, milling bodies, turning holders, and boring bars. Indexable insert drivers are precision hand tools used by machinists and tool room technicians to install and remove insert clamping screws without damaging the screw drive or the toolholder pocket. The compact form factor and T8 sizing make it a standard fixture in CNC and manual machining environments.
This driver is used wherever indexable cutting tools are serviced. Typical applications include production machining shops, tool cribs, and field service environments where indexable milling, turning, or drilling tools require insert changes. The T8 Torx Plus drive is commonly specified by toolholder manufacturers for insert clamping screws on smaller toolholder bodies. The SECO manufacturers catalog number for this item is T00-08P.
Key Features
- T8 Torx Plus drive type for precise engagement with indexable insert clamping screws
- Compatible with both standard Torx and Torx Plus fastener profiles at the T8 size
- Lightweight at 0.04 pounds for extended use without fatigue
- Designed specifically for indexable toolholder insert installation and removal
- Sold individually as a single-piece unit
Compatibility
Designed as an OEM-style driver for indexable cutting tools using T8 Torx or Torx Plus insert clamping screws. Refer to your toolholder documentation to confirm the required drive type and size before use.
Installation Notes
This tool is used by machinists and tool room personnel to install or replace indexable inserts. Always ensure the cutting tool is removed from the machine spindle and the machine is powered down before changing inserts. Apply steady, controlled force when seating insert screws to avoid stripping the drive or over-torquing the clamp. Follow the toolholder manufacturer’s recommended torque procedure for insert screw fastening.
Technical Specifications
- Drive Type: Torx and Torx Plus
- Torx Size: T8
- Product Type: Indexable Insert Driver
- Manufacturers Catalog Number: T00-08P
- Weight: 0.04 pounds
- Package Quantity: 1
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02440082
