Description

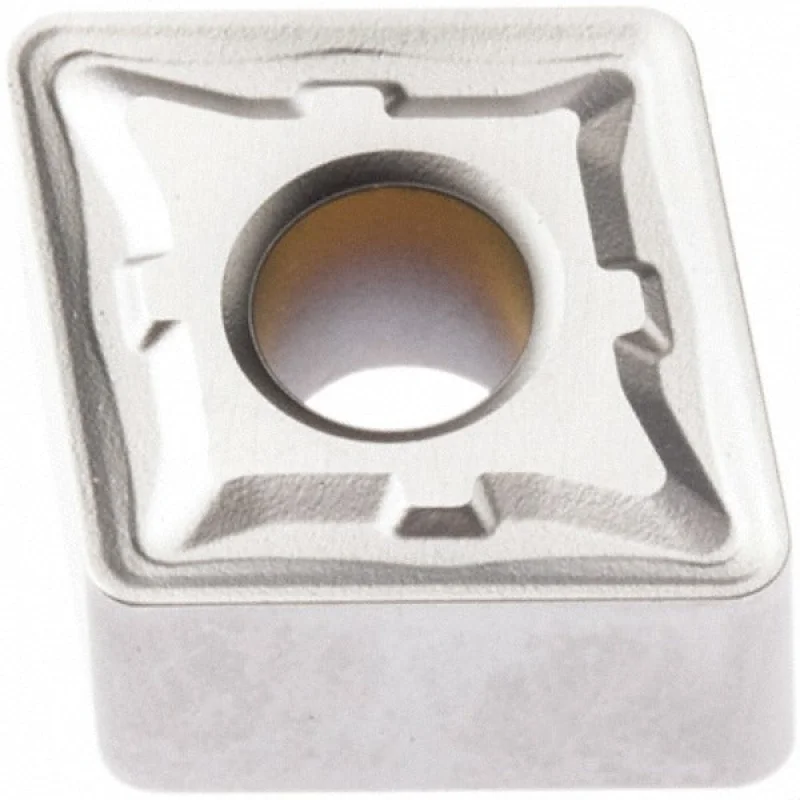

The SECO 02960544 is a CNMG643-M5 series indexable turning insert designed for metal cutting operations in steel, stainless steel, and cast iron. It carries the TP2501 grade designation with a Duratomic CVD coating system consisting of TiCN, Al2O3, and Cr layers for extended wear resistance at elevated cutting speeds. The insert features a negative rake geometry, an 80-degree diamond shape, a 3/4-inch inscribed circle, and a corner radius of 3/64 inch (0.0472 inch). Four cutting edges per insert and a chamfered and honed cutting edge style make this a cost-effective option for high-volume roughing and semi-finishing work. Licensed HVAC, plumbing, and electrical technicians aside, this insert is specified and installed by machinists and CNC operators in production and job-shop environments.
The 02960544 is suited for boring, facing, and turning applications on CNC lathes and turning centers. Primary workpiece material is steel (ISO material code P), with secondary suitability for stainless steel (M) and cast iron (K). Recommended material grades are P10, P20, P30, and P35, covering a range from light finishing to heavy roughing cuts. The insert is multi-use capable, supporting multiple operations without a toolholder change. Maximum depth of cut reaches 0.7126 inch, and the insert length is 0.7598 inch.
Key Features
- TP2501 Duratomic CVD coating: TiCN, Al2O3, and Cr layers for heat and abrasion resistance
- 80-degree diamond (CNMG) shape with negative rake and N clearance angle for rigid, stable cutting
- Four cutting edges per insert for reduced tooling cost per edge
- M5 chip breaker geometry suited for medium-to-heavy chip loads on steel and stainless
- Compatible with clamp, pin, and lever lock holding methods for broad toolholder compatibility
- Chamfered and honed cutting edge style for edge strength and reliability in interrupted or continuous cuts
Compatibility
Designed as a direct-fit replacement or standard insert for CNMG-style toolholders accepting a 3/4-inch inscribed circle insert. ISO designation CNMG190612-M5. Conforms to ANSI and ISO insert standards. Suitable for toolholders specifying clamp, pin, or lever lock insert retention.
Installation Notes
Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before seating or indexing the insert. Ensure the toolholder pocket and clamping surfaces are clean and free of chips before placing the insert, as debris under the insert seat affects cutting geometry and can damage the pocket. Follow the toolholder manufacturer torque specifications for clamping screws or levers; do not over-torque.
Technical Specifications
- Insert Style: CNMG
- Series: CNMG-M5
- Industry Standard Number: CNMG643-M5
- ISO Code: CNMG190612-M5
- Manufacturer Grade: TP2501
- Insert Material: Carbide
- Coating Process: CVD
- Coating Layers: TiCN, Al2O3, Cr
- Coating Classification: Duratomic
- Insert Shape: Diamond 80
- Included Angle: 80 degrees
- Rake: Negative
- Clearance Code: N
- Tolerance Code: M
- Relief Angle: 0 degrees
- Chip Breaker: M5
- Cutting Edge Style: Chamfered and Honed
- Number of Cutting Edges: 4
- Inscribed Circle: 3/4 inch (0.7500 inch)
- Corner Radius: 3/64 inch (0.0472 inch)
- Insert Thickness: 1/4 inch (0.2500 inch)
- Insert Length: 0.7598 inch
- Hole Diameter: 0.3118 inch
- Maximum Depth of Cut: 0.7126 inch
- Primary Workpiece Material: Steel (P)
- Secondary Workpiece Material: Stainless Steel (M), Cast Iron (K)
- Material Grade: P10, P20, P30, P35
- Insert Holding Method: Clamp, Pin, Lever Lock
- Multi-Use Application: Boring, Facing, Turning
- Insert Hand: Neutral
- Standards: ANSI, ISO
- Weight: 0.06 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02960544
