Description

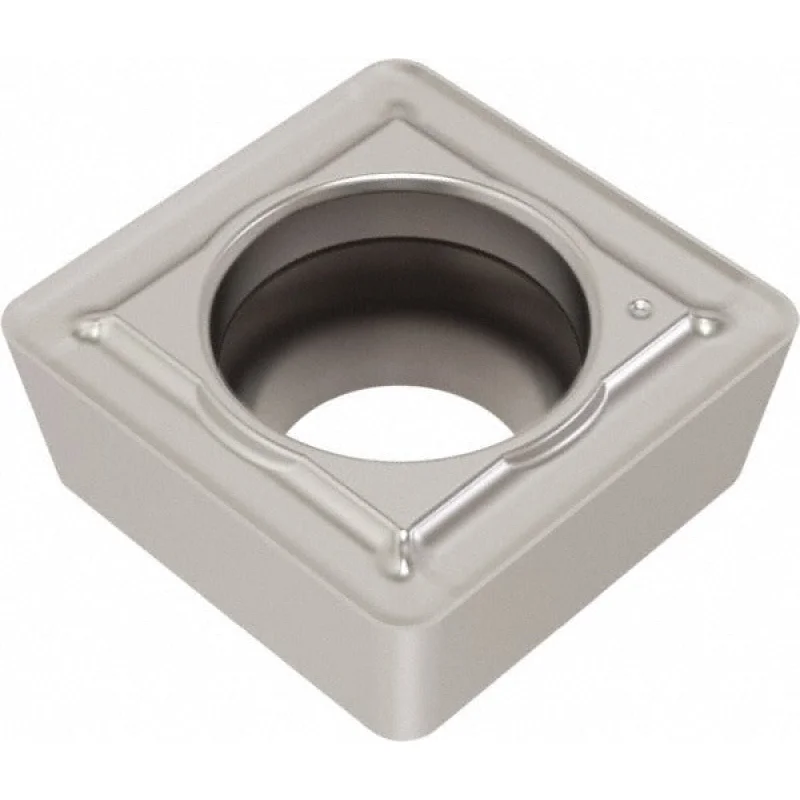

The SECO 03134315 is a solid carbide indexable drill insert designed for use in indexable insert drills requiring SCGX-style geometry. Built to the DS2050 manufacturer grade with a PVD coating process, this insert features a square 90-degree shape with a 7-degree relief angle and an MP chipbreaker for reliable chip control across a broad range of workpiece materials. The inscribed circle measures 3/8 inches, and the insert size code is 09T308. Licensed HVAC and metalworking trade professionals will recognize this as a precision consumable suited to production drilling environments where consistent tool life and predictable chip formation are required.
This insert belongs to the SECO Perfomax series and is engineered for universal material compatibility, covering ISO material groups M, N, P, and S. It supports both left-hand and right-hand cutting directions, making it adaptable across a range of drilling setups. The MP chipbreaker geometry is optimized for moderate feed rates and depths of cut in general-purpose and mixed-material drilling applications in manufacturing and machining environments.
Key Features
- DS2050 grade with PVD coating for extended wear resistance
- MP chipbreaker geometry promotes controlled chip formation at moderate feeds
- Dual cutting direction left hand and right hand compatible
- 90-degree square insert shape with 7-degree relief angle
- 0.80 mm corner radius reduces edge chipping on entry and exit
- Universal material grade (C2, C3) suits ISO groups M, N, P, and S
Compatibility
Designed as an OEM-style replacement insert for SECO Perfomax series indexable insert drills accepting SCGX09 insert style geometry.
Installation Notes
Insert replacement should be performed by a qualified machinist or tooling technician with the spindle fully stopped and the machine locked out per standard LOTO procedures. Use the appropriate torx or hex key as specified by the drill body manufacturer when seating the insert do not overtighten or use impact tools on the clamping screw. Inspect the insert pocket for damage or debris before seating a new insert. Rotate or replace both inserts in a twin-insert drill body at the same time to maintain balance and cutting symmetry.
Technical Specifications
- Insert Style: SCGX
- Insert Material: Solid Carbide
- Manufacturer Grade: DS2050
- Series: Perfomax
- Inscribed Circle: 3/8 inches
- Insert Size Code: 09T308
- Width: 9.53 mm (0.3750 inches)
- Length: 0.3750 inches
- Corner Radius: 0.80 mm
- Shape: Square
- Included Angle: 90 degrees
- Relief Angle: 7 degrees
- Chipbreaker: MP
- Coating Process: PVD
- Cutting Direction: Left Hand and Right Hand
- Primary Workpiece Material: Universal (ISO M, N, P, S)
- Material Grade: C2, C3
- Package Height: 1.5 inches
- Package Width: 1.5 inches
- Package Length: 3.54 inches
- Weight: 0.01 pounds
- Package Quantity: 1
- Minimum Order Quantity: 10
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03134315
