Description

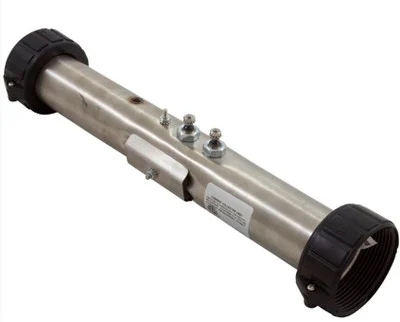

Spa Components Heater B24055SD is a 15 inch long heater for 2 inch inner diameter plumbing (15″x2″) and is rated at 230v/5.5kW for Gecko S-Class Spa packs as used in Artesian Spas and other brand hot tubs.
Stainless steel 2-1/4″ x 15″ 5.5kW/230v replacement flow thru heater with, 1/8″npt pressure switch tap, and 2″ split nuts included.
Pressure switch (510AD0167), gaskets (711-4030), and/or tailpieces with gaskets (50085) not included.
| Housing Configuration | Straight Flow Through Heater |
| Heater Length | 15″ |
| Lead End Terminal Location | 5-3/4″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 9-3/4″ From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Location | 7-1/2″ |
| Sensor Stud Orientation | 9 O`Clock |
| Mounting Stud Type | None |
| Heater Size | 2″ |
Replaces 1-HA-B24055D , 2-00-5000 , 20-00232 , 20-00294 , 20-00307 , 20-00417 , 20-00430 , 26-0802-5S-K , 48-3300-10-154H , 48-3300-10-304H , 611577, 9920-100338, AQT2000530, B24055A, C2400-0802A, C2450-3101ET-G, C2550-0801.
