Description
DISCONTINUED – see 26-0800-7S-K without pressure switch or 26-0800-7s-KP with pressure switch.

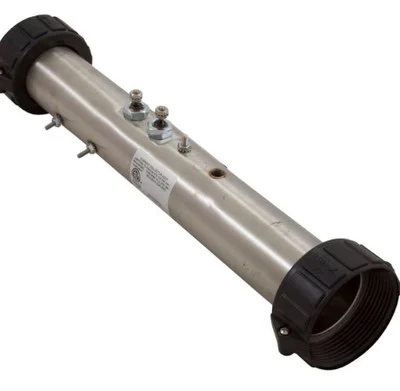

Spa Components Heater B24055UC is a 15 inch long heater for 2 inch inner diameter plumbing (15″x2″) and is rated at 230v/5.5kW for Gecko S-Class Spa packs.
Spa heater specs
| Housing Configuration | Straight |
| Heater Length | 15″ |
| Lead End Terminal Location | 5-3/4″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 9-7/8″ From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Location | 7-3/8″ |
| Sensor Stud Orientation | 9 O`Clock |
| Mounting Stud Type | Fixed |
| Heater Size | 2″ |
| Heater Application | Gecko |
Stainless steel 2-1/4″ x 15″ 5.5kW/230v replacement flow thru heater with 2″mbt split nuts. 2″ heater tailpieces, and gaskets not included included. Pressure switch not included
Replaces 2-00-7003 , 2-00-7007 , 20-00232 , 20-00249 , 20-00250 , 20-00251 , 20-00270 , 20-00272 , 20-00274 , 20-00294 , 26-0601-7S-K , 26-0601-7T-K , 26-0800-7S-K , 26-0800-7T-K , 317050 , 530AA0107 , 530AA0284 , 530AA0437 , 530AA0459 , 610473 , 9920-100338 , 9920-100339 , B24055LA5 , B24055LASD , B24055U , C2550-0601 , C2550-0601ET , C2550-0800-2 , C2550-0800ET-G , C2550-0803A , GK9920100339
