Description
SPLASH | Impeller 1 HP | 05-3864-04-R
OPTIMUS 5069-05B
JACUZZI 05-3864-04-R
THIS IS A 1-1/2 HP Impeller USED IN THE J, JCM, AND B SERIES

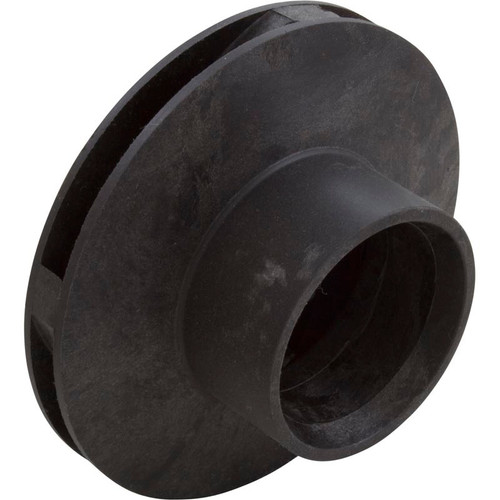

BLACK PLASTIC Impeller
INCLUDES: Impeller ONLY
CLOSED FACE
NUMBER OF VANES: 4
OUTSIDE DIAMETER: 4″
THICKNESS: 7/16″
(OUTSIDE THICKNESS AT OUTSIDE EDGE)
THICKNESS: 1/4″ (B)
(INSIDE THICKNESS AT OUTSIDE EDGE)
FRONT TO BACK: 3-1/4″
(FROM END OF SHAFT TO FRONT ON INTAKE)
INLET OUTSIDE DIAMETER: 2-1/16″
INLET INSIDE DIAMETER: 1-13/16″
SHAFT COVER LENGTH: 1-1/2″
SHAFT COVER OD 5/8″
(THIS IS WHERE THE Impeller SCREWS ONTO THE MOTOR SHAFT)
MARKINGS:
05386404 IS WRITTEN ONTO THE Impeller FACE IN INK
