Description

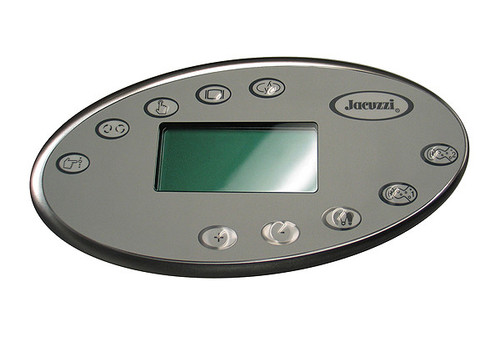

The Sundance Spas Topside 2600-323 features a 10-button panel that offers a wide range of features and functions. With select, cycle, display, mode, screen invert, temperature up/down, light/dimmer, pump 1, and pump 2 buttons, you can easily control your spa’s temperature and lighting. The large LCD display and two ribbon cable cords with 10-pin male and female connectors make it easy to connect the topside 2600-323 panel to your spa’s circuit board. This topside control panel is compatible with 2002-2006 J-300 2 pump model spas, giving you full control over your spa’s thermostat, lights, jets, and other features.
- Number Of Buttons – 10
- Connection – Phone Plug
- Shape – Oval
- Display Type – LCD
- Overlay Included – true
- Cable Length – 8′
- Topside Type – Electronic
- Topside Complete – Complete Topside
- Panel Size – 10-5/8″ x 5-1/2″
- Top Side Control Series – J300 LCD Series
Fitment guidelines:
For use on 2002-2006 J-300 2 pump model spas.
Additional information:
Alternate Part Numbers – SD2600-323, 58-453-1208, SD2600323
