Description
United Spas CL117S Control System C5-L T7S B11 is a complete control system with horizontal heater type included.
Latest version ships with the new T8S control panel with overlay included.
The C5 Series electronic controls now feature our fifth generation electronic power board, the B11 power board. The new B11 board features ‘zero-crossing’ technology. This means that the relays are now only engaged at the optimal zero crossing of AC power, which is easier on the relays, and easier on the components in the spa. Every trace on these boards have been carefully engineered, with low voltage circuitry separated from high-voltage circuitry, and utilizing solid brass bars instead of printed copper traces for high voltage power. This unique design ensures the safety and longevity of our control systems.C5 control boxes with the new B11 board now ship with our new dual-voltage transformers. The days of swapping out transformers to switch between 230V and 115V power hook-up are over! With these new transformers, and the addition of two additional 2-wire receptacles to the B11 board, incoming power voltage can be switched by moving the transformer’s 2-pin power selector plug between the B8’s 115V and 230V receptacles.With the addition of the new dual-voltage transformers, the C5 control series are now the only controls on the market that come out of the box ready to operate at 115V or 230V (3-wire or 4-wire), at 50Hz or 60Hz, and configurable to 40 different hardware configurations. Works right out of the box.
| Number Of Appliances | 3 |
| Manufacturer | United Spa Controls |
| Model | C5 |
| Supply Voltage | 115v, 230v – 3 Wire, 230v – 4 Wire |
| Heater Type | Low-Flow,-Fixed—Bottom-Back |
| Topside Included | T7-S repl. by T8-S |
| Circ Pump Ready | Yes 115v, Yes 115v/230v, Yes 230v |
| Auxiliary Topside Ready | No |
| Fiber Optic | Yes |
| Accessory Ready | Yes |
| Wi-Fi Compatible | No |
| 50/60 HZ | 60Hz |
United Spas C5-L, P1, P2, Aux, CP, 115/230v, T7S with T8S topside, B11
It is suggested that you purchase additional cords to go with this system as it only includes one cord for pump 1. Additional cords can be found as AMP cord 30-1001C or longer AMP cord 21086
Note: the heater is not currently available separate from the control system and is the horizontal heater type.
Enviromental Operational Temperature -0°F (-18°C) to 145°F (63°C)Storage Temperature -2°F (-19°C) to 175°F (79°C)Humidity Up to 80% RH, non condensingMechanicalWeight (without topside) 8.00 lbs. (3.63 kg)Dimensions (w/o unions) 8.50″H x 20.75″W x 6.00″DDimensions (mounting) 13.25″ x 2.63″EnclosureControl Box AluminumHeater Stainless SteelCertificationsETL Listed UL STD 1563 – 5th Edition(USA & Canada) CSA C22.2 NO. 218.1Minimum Heater Flow 15 GPM Minimum ElectricalIncoming Power 115V/230V 50/60HzOzone 230V/115V – 1ALight 12V – .9ACirculation Pump 230V/115V – 2APump-1 230V/115V – 12AAux (Air or Pump-3) 230V/115V – 12APump-2 230V/115V – 12AAudio 230V/115V – 4A

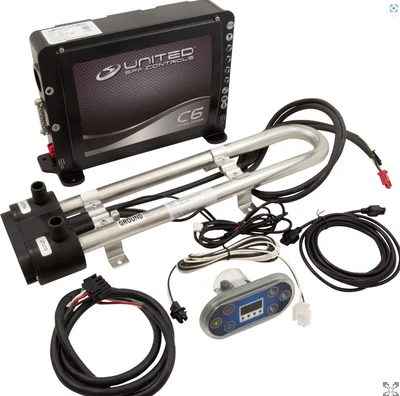

image not available – this item is a complete control system with control box/circuit board B11 and T8S topside. Control box is aluminum, heater is stainless steel.
