Description

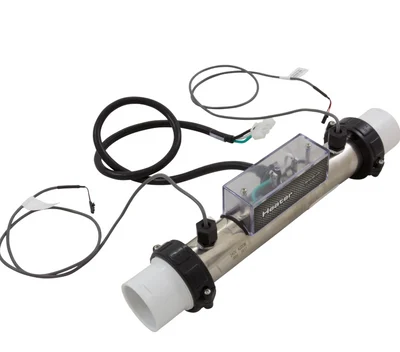

Generic 26-58203-K VS100 Heater 4kw 230 volt hot tub 10 inch heaters for Balboa M7 BP control systems that use the 2 sensors built into this heater VS100, 10″ x 1-1/2″, 4.0kW, 230v
Htr Assembly with 2 sensors, Balboa, 4.0kW 240V / 1.0kW 120V, 1.5″x10″, VS100
| Housing Configuration | Straight |
| Heater Length | 10″ |
| Lead End Terminal Location | 4″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 1-1/8″ From Leading End, 8-7/8″ From Leading End |
| Kilowatts | 1.0kW, 4.0kW |
| Voltage | 115v, 230v |
| Sensor Stud Orientation | None |
| Mounting Stud Type | None |
| Heater Size | 1-1/2″ |
| Heater Application | Balboa Water Group, Generic Aquarest replacement |
| Special Features | Grounding Lug, M7 Sensors, Non-Replaceable Element, Power Cord |
Note: The OEM tailpieces and gaskets for this heater is 92153 and gasket 92115 if needed.Please be aware that the OEM tailpieces and gaskets are not interchangeable with the Waterway tailpiece 417-4050 and gasket 711-4050. Or replace complete tailpiece/gasket set with 417-4090 tailpiece and 711-4050 gasket.
