Description

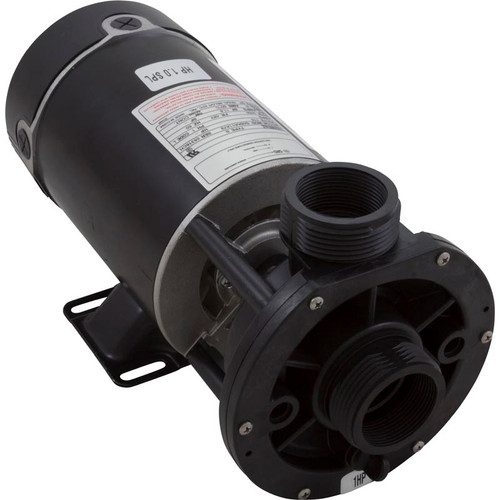

The Waterway Pump 3410410-15 is designed for long-lasting performance and reliability. It features a center discharge, 1.0 HP, 115V, 12.0A, and 48-Frame motor with a 1.5″ intake and discharge opening. The wet end can be rotated for easier installation. Additionally, it is available in 0.75HP to 2Hp and single or dual-speed models.
The Waterway Pump 3410410-15 also comes with Viton seals for added durability and is California Title 20 Compliant. This new E-Series version of the pump replaces the older style Waterway center discharge pump. Please note that this does not include unions or pump cord.
- Cord Type – NONE
- Voltage – 115
- Horsepower – 1
- Frame Size – 48Y
- Number of Speeds – 1
- Frequency (Hz) – 60
- High Speed (Amp) – 12
- Pump Model – E-Series Center Discharge
- Suction Pipe – 1-1/2″ Female Pipe Thread (fpt), Male Buttress Thread (mbt)
- Suction Style – Center
- Discharge Pipe – 1-1/2″ Female Pipe Thread (fpt), Male Buttress Thread (mbt)
- Discharge Style – Center
- Drain Plug Location – 3,6,9 o`clock
Additional information:
Alternate Part Numbers – 34-270-3606, WWP-10-1031, WW341041015
