Description

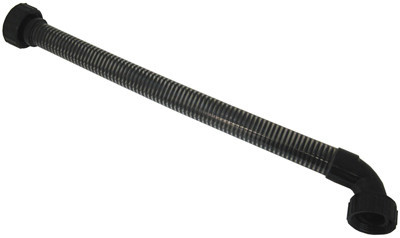

WATERWAY | 19” Sand Filter to Pump Union Hose Assy | 550-1811
OPTIMUS 4742-160 WATERWAY 550-1811
GENERAL DESCRIPTION: THIS IS THE FLEXIBLE PUMP TO FILTER HOSE USED ON SOME WATERWAY PUMP AND FILTER SYSTEMS, 19″ DIAMETER FILTER ONE END HAS A 2″ UNION (ACTUAL UNION NUT THREADS MEASURE ABOUT 3-1/16″ THE OTHER END HAS A SWEEP TYPE 90 DEGREE ELBOW WITH 1-1/2″ UNION NUT THE UNION NUT THREADS MEASURE ABOUT 2-9/16″
MATERIAL: HOSE: CLEAR FLEX PVC, 1-1/2″ ID, 1-7/8″ OD FITINGS: BLACK PLASTIC LENGTH: 26″ (HOSE LENGTH BETWEEN FITTINGS) (A) LENGTH: 32-1/2″ (TOTAL LENGTH END TO END) HOSE OUTSIDE DIAMETER: 1-7/8″ (B) (1-1/2″ ID PVC FLEX HOSE IS 1-7/8″ OD)
MARKINGS: “417-5020″ ON END OF 2” UNION “413-5100″ ON END OF ELBOW PARTS: 4742-138 (550-1841) SWEEP ELBOW, WITH RETAINER AND UNION NUT 9175-03 (400-5570) 2″ UNION (THIS IS WHITE BUT WILL FIT) 9175-17 (711-4010) GASKET FOR 2” UNION 9175-16 (711-4000) GASKET FOR END OF SWEEP ELBOW
