Description
This is the complete bathtub retrofit kit to turn your ordinary bathtub into a jetted whirlpool bath.
This kit is discontinued – see the kit with biscuit jets 3-80-5152 or see our other jetted bath kits 3-80-5050, 3-80-5070, 3-80-5080, and 3-80-5060
WHITE color jets.

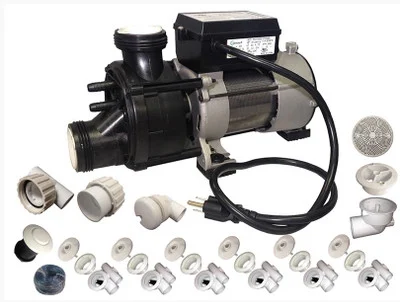

This complete kit includes the 3/4 HP pump with air switch as well as the pump union, tee, air control in white, suction fitting assembly white, 10 feet of tubing, the air button white, 6 bath jets in white and even the Jet Tool.
This jetted hot tub bathtub kit includes:
- 3/4HP 120 bathtub pump with power cord and NEMA power plug – 7.5 amp motor with air switch
- 1 Pump Union 1 1/2″ slip
- 1 Pump Union Tee – 1″x1″x1″ slip and o-ring
- 1 Venturi Air Control white
- 1 Suction Fitting body and wall fitting with white suction cover
- 1 10 foot length of Tubing for connecting the air switch
- 1 Air Button in white
- 1 Jet Tool – jet wrench for classic and econo mets by Waterway
- 6 Bath Jets in white including white wall fittings and 2 1/4″ eyeballs with escutcheons in white
- 6 Jet bodies (1/2″ x 1″ slip adjustable)
Includes a jet tool – wrench too.
This tool is made by Waterway.
All Fittings are “White” color.
We also offer this entire kit in chrome or a limited number of biscuit color jet kits as well.
Includes the air button, jets, suction, valve and 3/4HP pump with cord and plug. (pump is 120v).
Please note that the 2 barb connectors in the suction side of the pump may need to be drilled out if needed – otherwise they can be plugged if not needed. (Most new pumps have this sealed with option to drill out and use these additional 2 barb ports if needed).
Need a heater?
You can use a standard bath heater. You have two options – Vacuum side installation or Pressure side installation. This heater is made to help maintain the water temperature.
Heater In Line – vacuum side
935213-23
Hydroquip Heater
PH101-15UP
1x 321HF10-0150 / 1-00-0124PK Pump: .75HP 7.5AMP with Air Switch 1x 400-4060 1-1/2″ Slip Pump Union 1x 400-4200 Pump Union Tee 1″ X 1″ X 1″ Slip & O-Ring 1x 660-3280-CW Venturi Air Control White 1x 642-4040 Suction Fitting Part: Body 1×215-5080 Suction Fitting Part: Wall Fitting 1x 643-4460-CW Suction Cover: White 6x 227-2460-A7 Jet Body: 1/2″ X 1″ Slip Adjustable 6x 215-1200 Jet Part: Wall Fitting .650 6x 227-4010-CW Jet Internal: 2-1/4″ Eyeball & Escutcheon White 1 x 218-0750 Jet Tool 1x – Tubing 10′ 1x 951590-601 Air Button White
